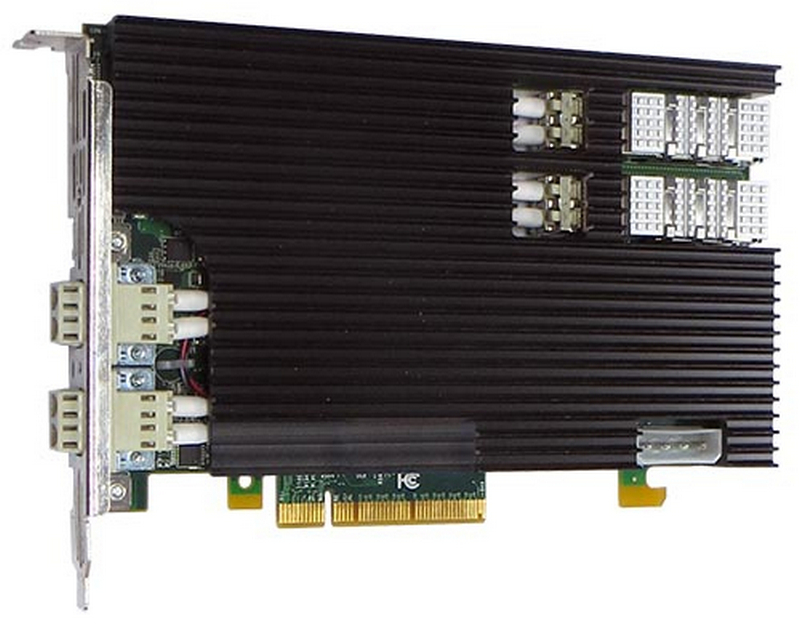

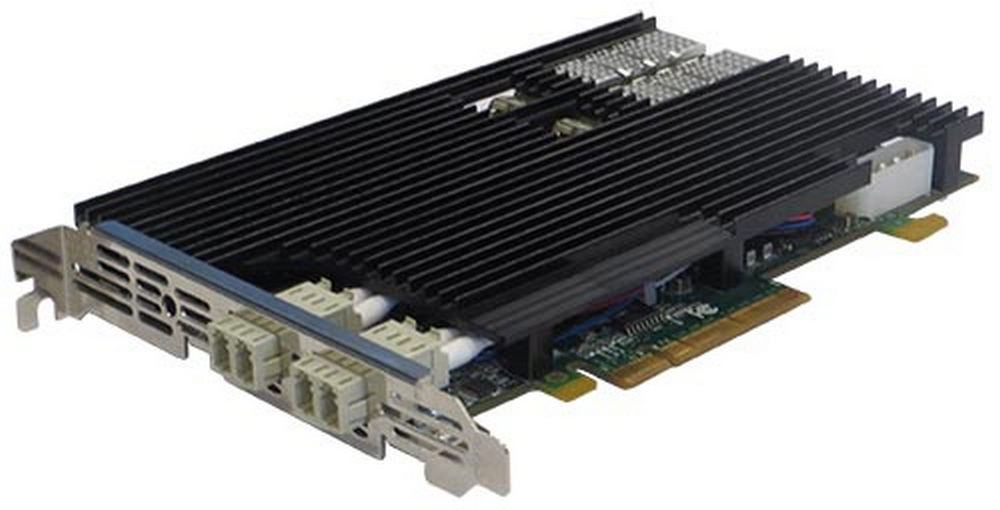

Сетевой адаптер Silicom PE210G2DBi9-SR-SD

ЧИП : Intel 82599EB
СТАНДАРТ : Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM LAN PHY)
ИНТЕРФЕЙС : PCI-E (2.0) x8
ПОРТЫ / РАЗЪЕМЫ : 2x LC
СКОРОСТЬ ПЕРЕДАЧИ ДАННЫХ : 10 Gigabit
МАКСИМАЛЬНАЯ ДИСТАНЦИЯ ПЕРЕДАЧИ ДАННЫХ :
62.5um, 160MHz/Km 13m
62.5um, (OM1)200MHz/Km 16.5m
50um, 400MHz/Km 33m
50um, (OM2)500 MHz/Km 41m
50um, (OM3)2000MHz/Km 150m
ИНДИКАТОРЫ :
по два светодиода на порт
Link - Turns on link (yellow).
ACT - Blinks on activity (green)
один двухцветный светодиода
Bypass - Green on Bypass, Yellow on Disconnect, off on Normal.
УПРАВЛЕНИЕ : n/a
ПРОТОКОЛЫ :
FCC Part 15, Subpart B Class A
Conducted Emissions
Radiated Emissions
CE EN 55022: 1998 Class A Amendments A1: 2000; A2: 2003
Conducted Emissions
Radiated Emissions
CE EN 55024: 1998 Amendments A1: 2000; A2: 2003
Immunity for ITE Amendment A1: 2001
CE EN 61000-3-2 2000, Class A
Harmonic Current Emissions
CE EN 61000 3-3 1995, Amendment A1: 2001
Voltage Fluctuations and Flicker
CE IEC 6100-4-2: 1995
ESD Air Discharge 8kV. Contact Discharge 4kV.
CE IEC 6100-4-3:1995
Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
CE IEC 6100-4-4:1995
EFT/B: Immunity to electrical fast transients 1kV Power
Leads, 0.5Kv Signals Leads
CE IEC 6100-4-5:1995
Immunity to conductive surges COM Mode; 2kV,
Dif. Mode 1kV
CE IEC 6100-4-6:1996
Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M.
By 1kHz
CE IEC 6100-4-11:1994
Voltage Dips and Short Interruptions
V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per
ПОДДЕРЖКА ОС : Linux
ПОТРЕБЛЕНИЕ ЭНЕРГИИ : до 21.48W
